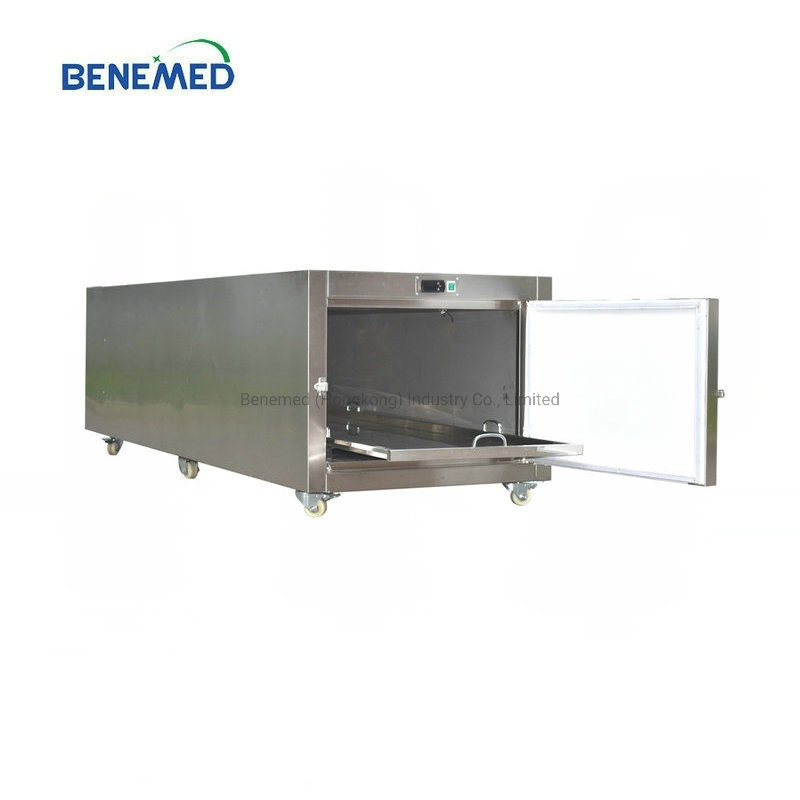

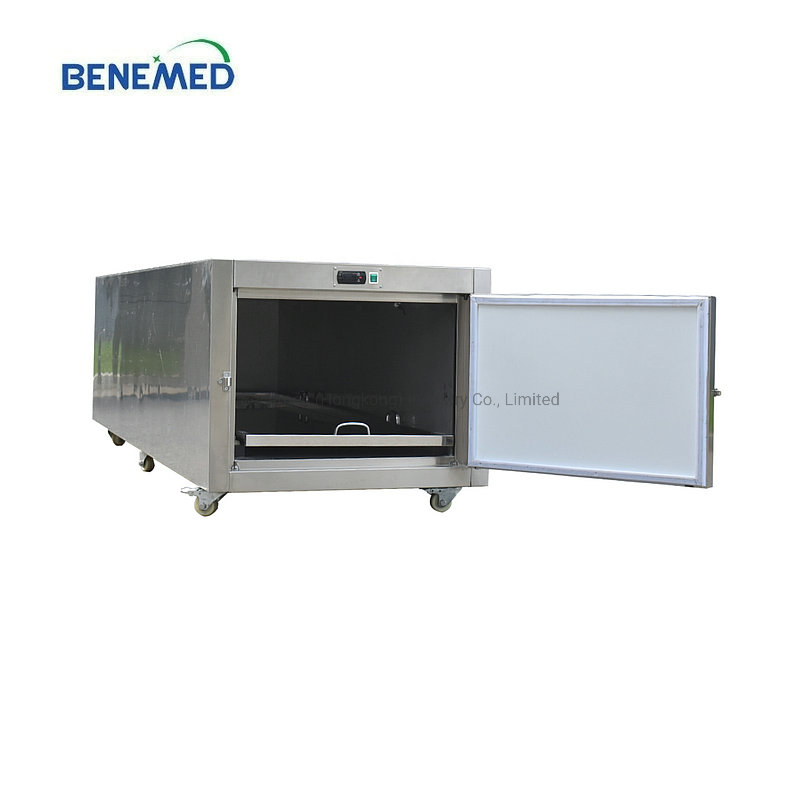

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

1 / 5

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

Customization:	Available
Customized:	Customized
Certification:	CE

Send Inquiry

Product Description

Basic Specifications

Model NO.STG-1

ScaleMedium

Over-Temp Alarmwithout Alarm Function

TypeCryobiology Cooling Device

Material201 Stainless Steel

Temperature-16 to 10 Celsius Degree

After-Sale ServiceFree Spare Parts

Capacity1 Body Mortuary Refrigerator

PackagePlywood

Specification2520*850*650 mm

HS Code8418402900

Production Cap.20000PCS

Product Description

Mortuary Refrigerator Mortuary Freezer Store Corpses Dead Body Morgue Corpse

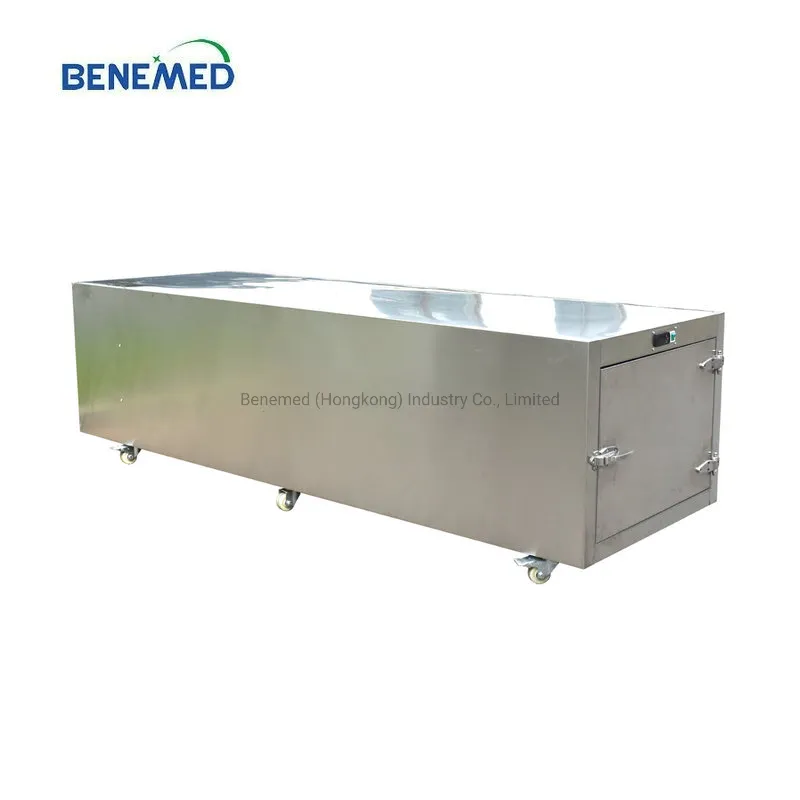

Mortuary Refrigerator

Technical Details:

Product Name	Germany Compressor 1 bodies single chamber Morgue cabinet Dead body freezer morgue refrigerator
Temperature Range	-18 ºC / -30ºC is optional
Controller	Italy CAREL
Compressor	Germany SECOP
Refrigerant	R134a
Cooling Type	Direct cooling
Power Supply	220V/50~60HZ
Rated Power	350 W
Electrical Current	3.1 A
Power Consumption	1.6 kWh/24h(running)
Capacity	1 BODY Mortuary refrigerator
Interior Size	6501950450 mm
Exterior Size	8102200850mm
Package Size	95023001000mm

Morgue Freezer Detail 1

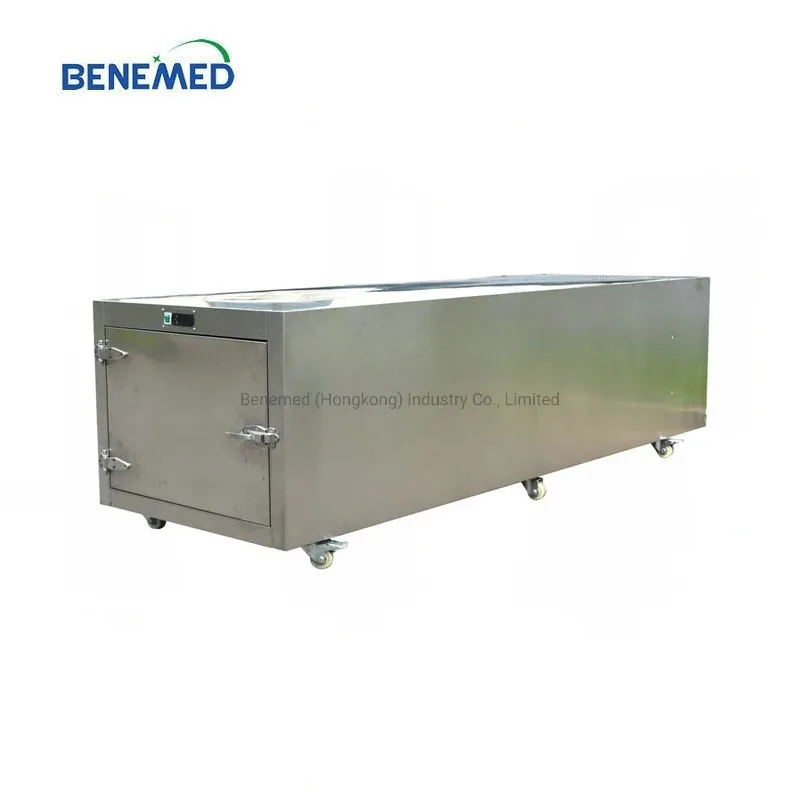

Morgue Freezer Detail 2

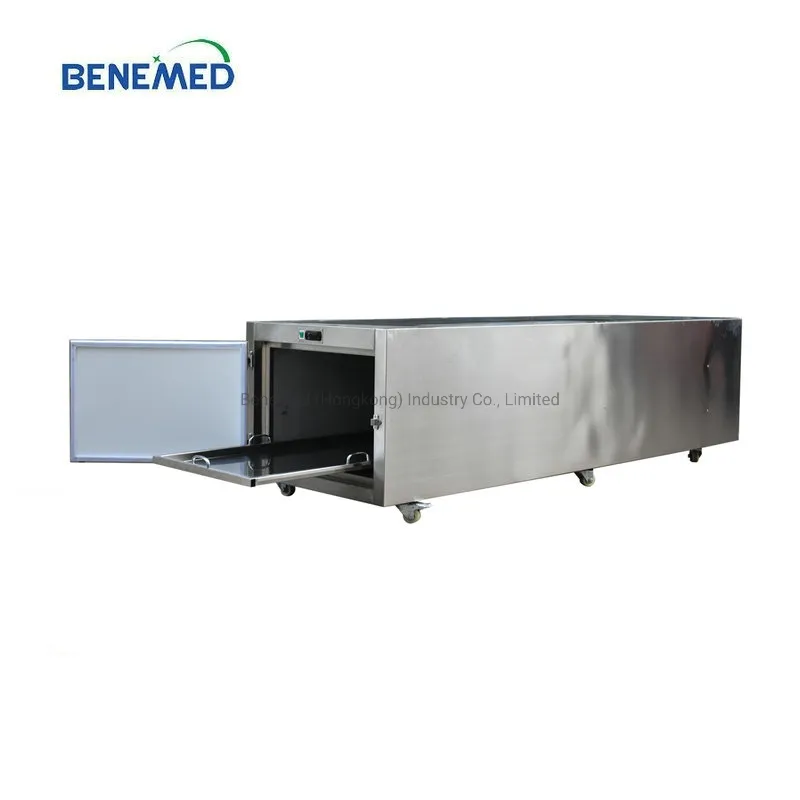

Morgue Freezer Detail 3

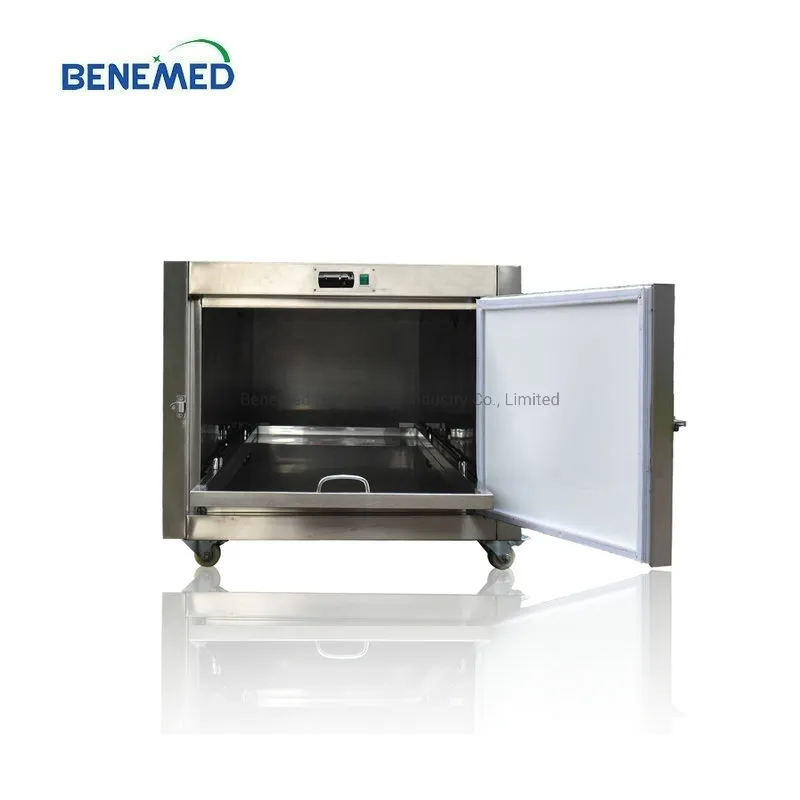

Morgue Freezer Detail 4

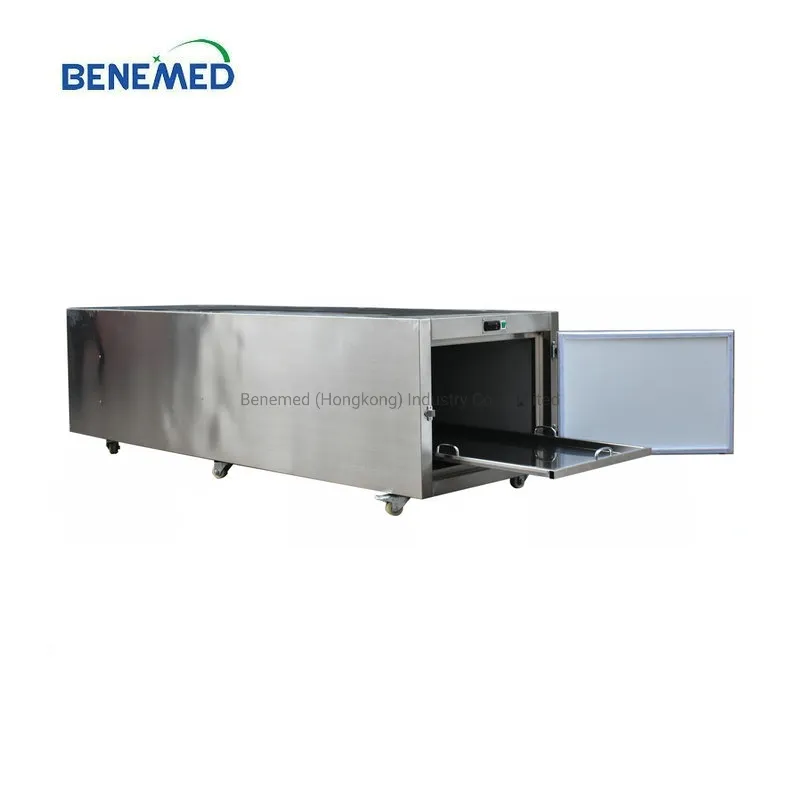

Morgue Freezer Detail 5

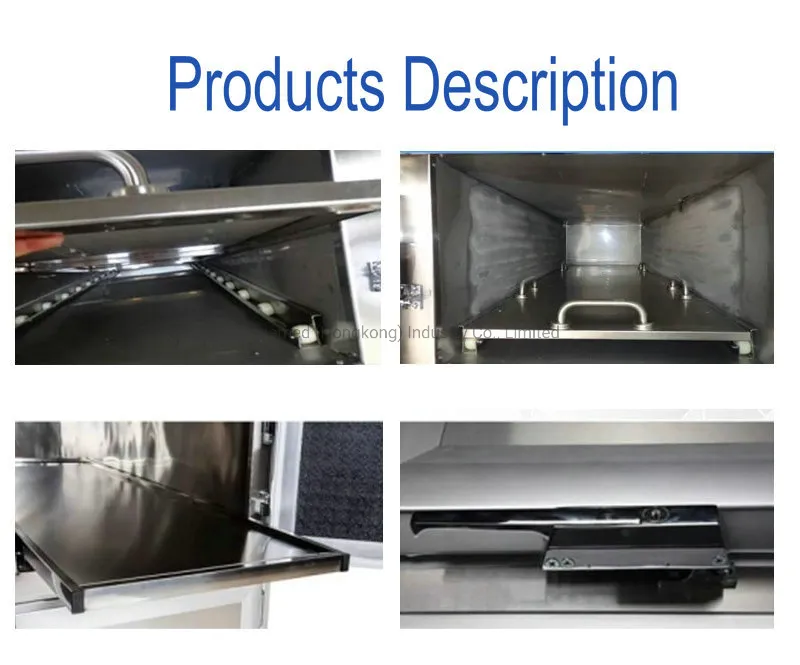

Morgue Freezer Detail 6

Technical Diagram 1

Technical Diagram 2

Technical Diagram 3

Frequently Asked Questions

Q1: What is the standard temperature range for this mortuary refrigerator?

A: The standard range is -16 to 10 Celsius degrees, with options for deeper freezing between -18 ºC and -30 ºC depending on your requirements.

Q2: Which compressor and controller systems are used?

A: We use high-quality Germany SECOP compressors and Italy CAREL controllers to ensure precise temperature management and long-term reliability.

Q3: What material is the unit constructed from?

A: The unit is constructed from durable 201 Stainless Steel, providing excellent corrosion resistance and easy cleaning for medical environments.

Q4: What are the power requirements for the STG-1 model?

A: It operates on a standard 220V/50~60Hz power supply with a rated power of 350W and a daily consumption of approximately 1.6 kWh.

Q5: How is the product packaged for international shipping?

A: The unit is securely packed in a robust Plywood case to ensure it arrives safely and without damage during transit.

Q6: Does the unit include an over-temperature alarm?

A: The base model (STG-1) is designed without an alarm function; however, the precise CAREL controller ensures steady temperature monitoring.
