Basic Information
Certification
ISO, FDA, CE
High Position
198*57*90cm

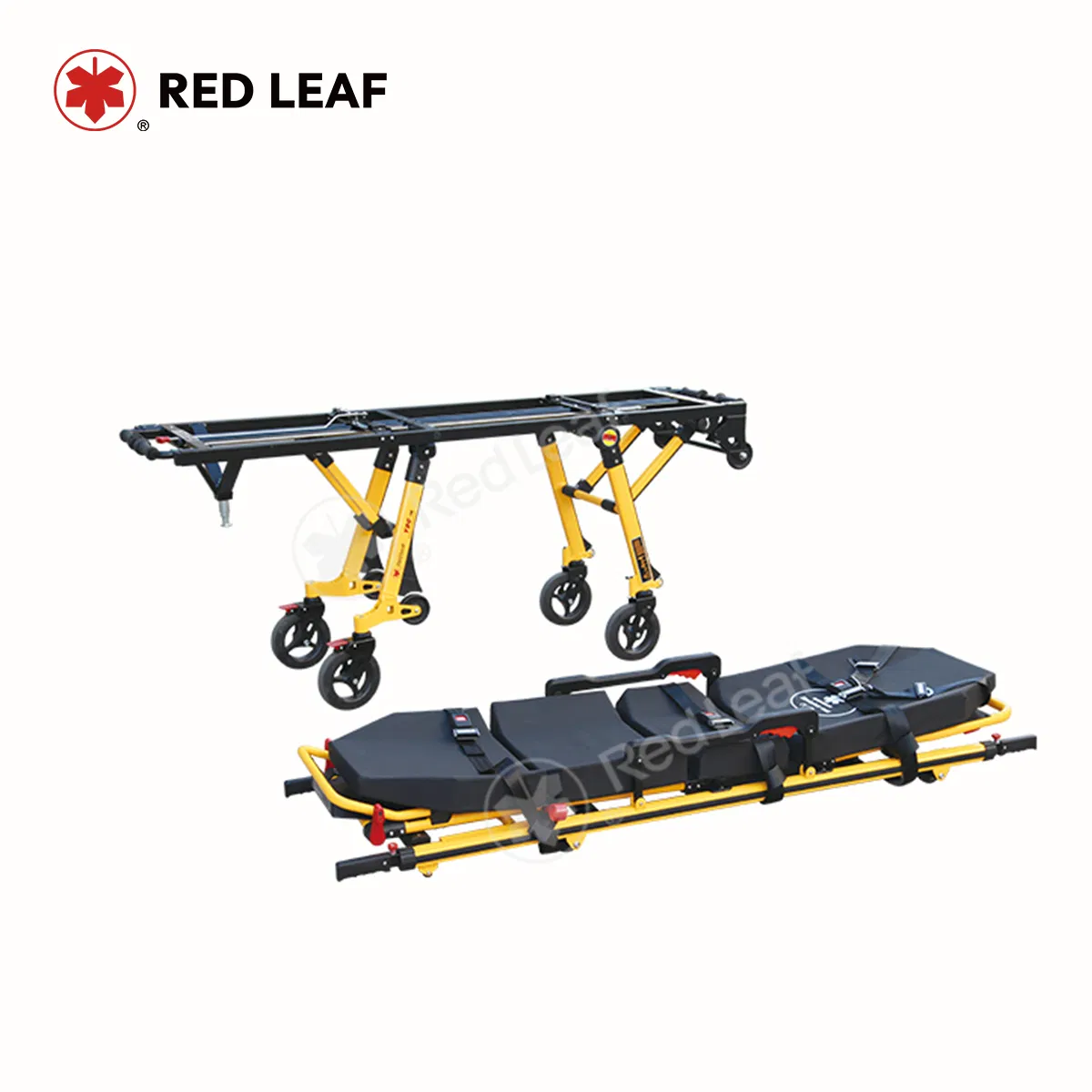

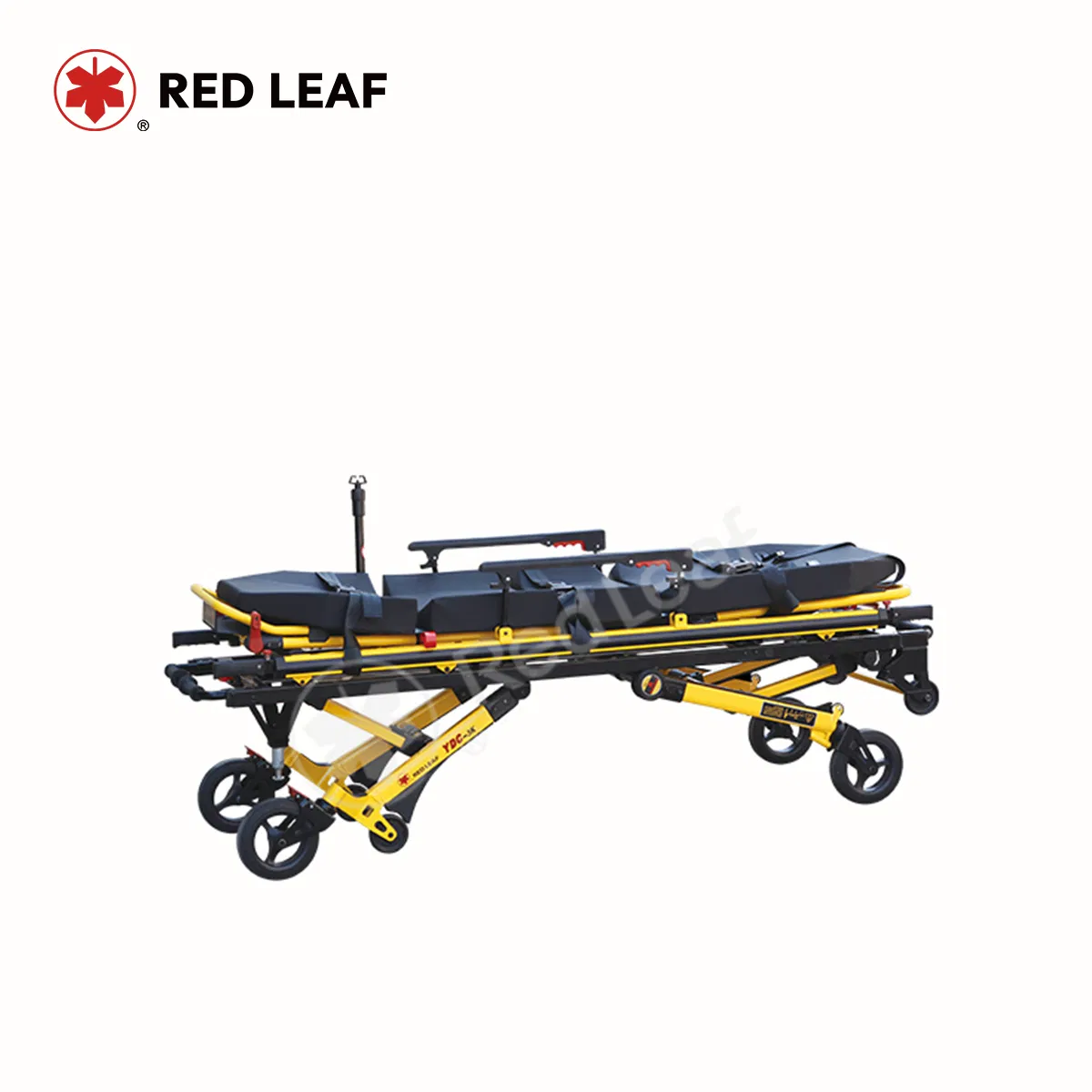

Technical Features

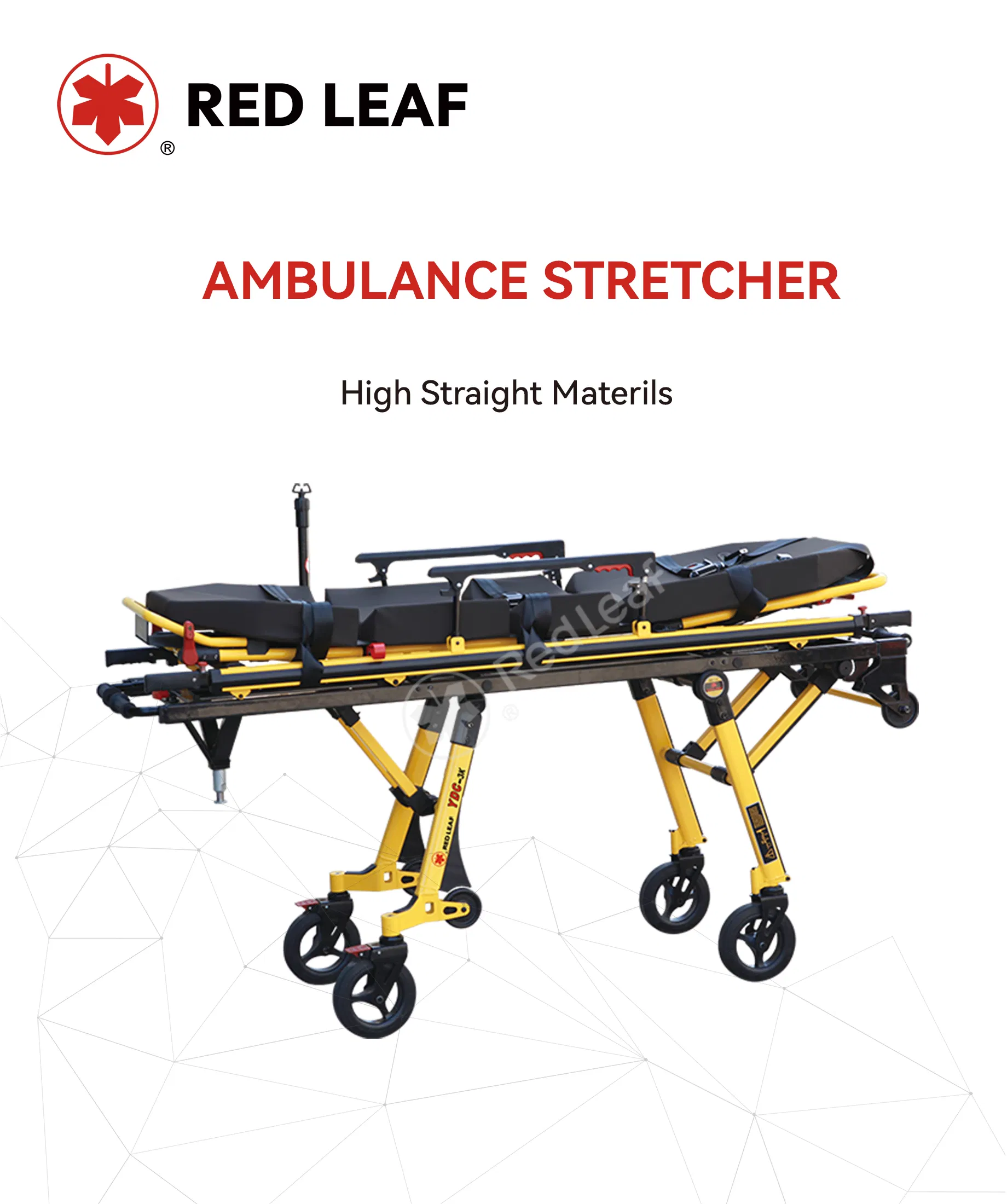

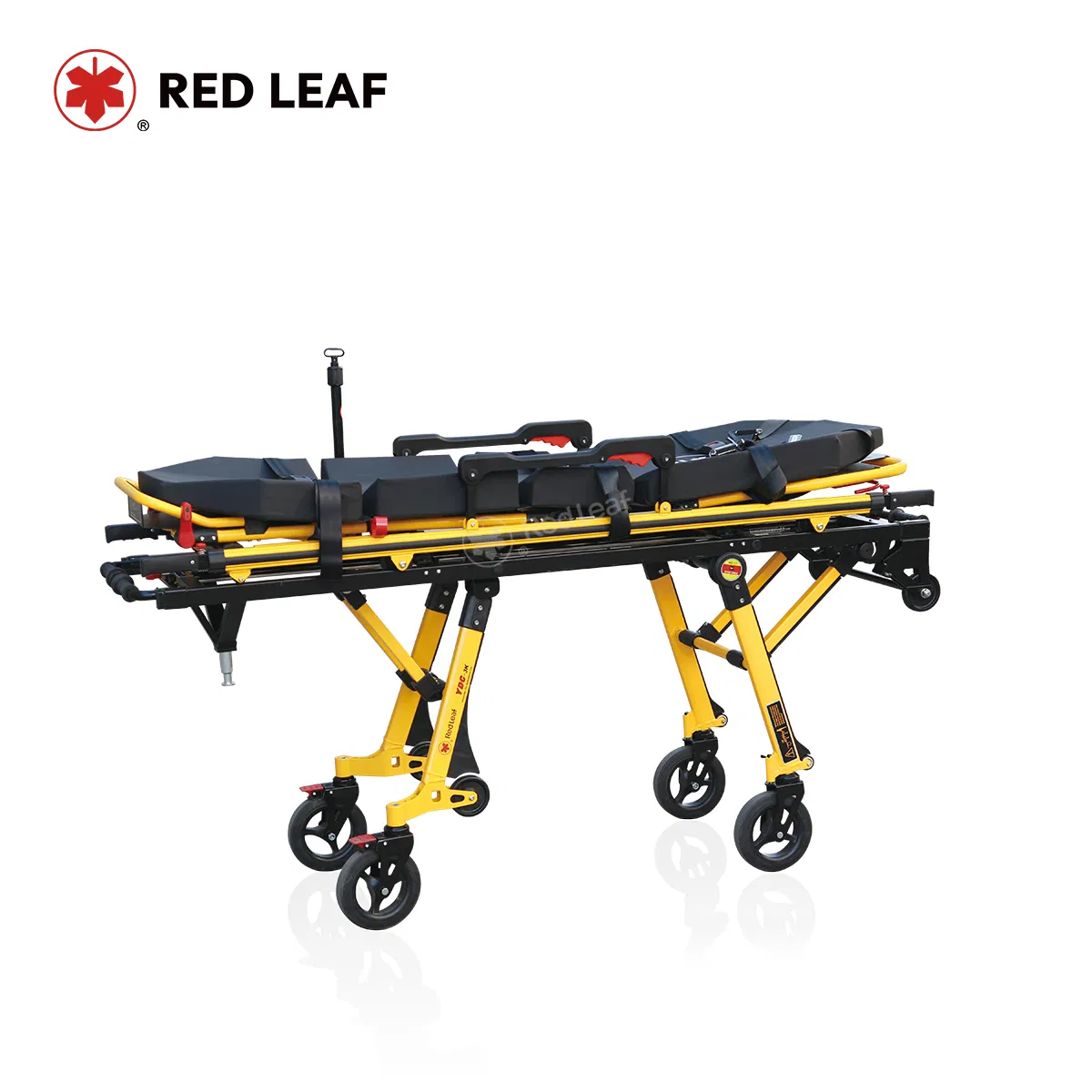

- The main material is high-strength aluminum alloy.
- The height of whole stretcher can be adjusted in more than 4 positions, convenient for CPR operation.

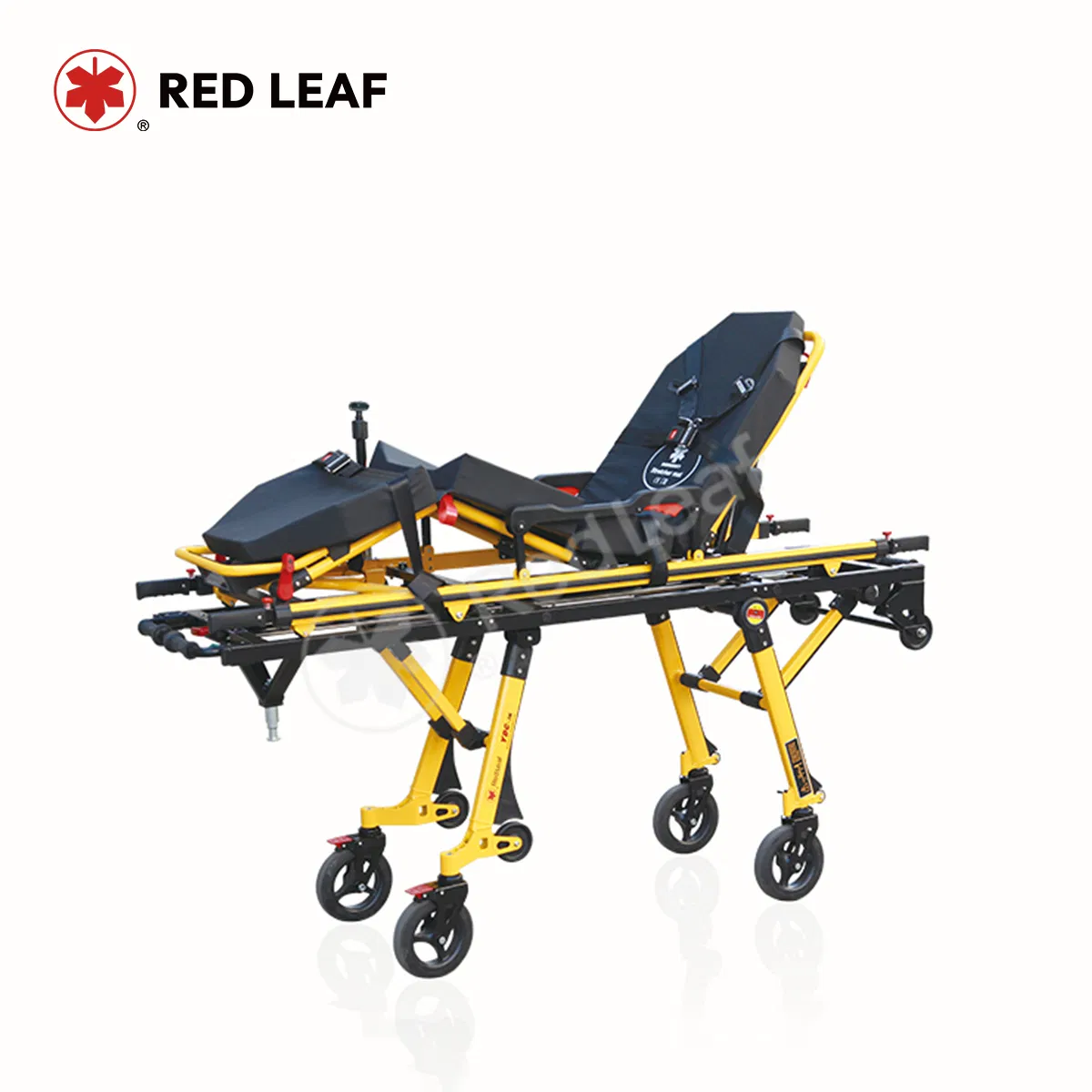

- The height of front part and back part can be adjusted in 6 positions.
- Stretcher's leg folding mechanism and height adjustment is controlled through front and rear pull rod operation.
- Guardrail using polymer plastics; adjustable structure is easy for patient access.

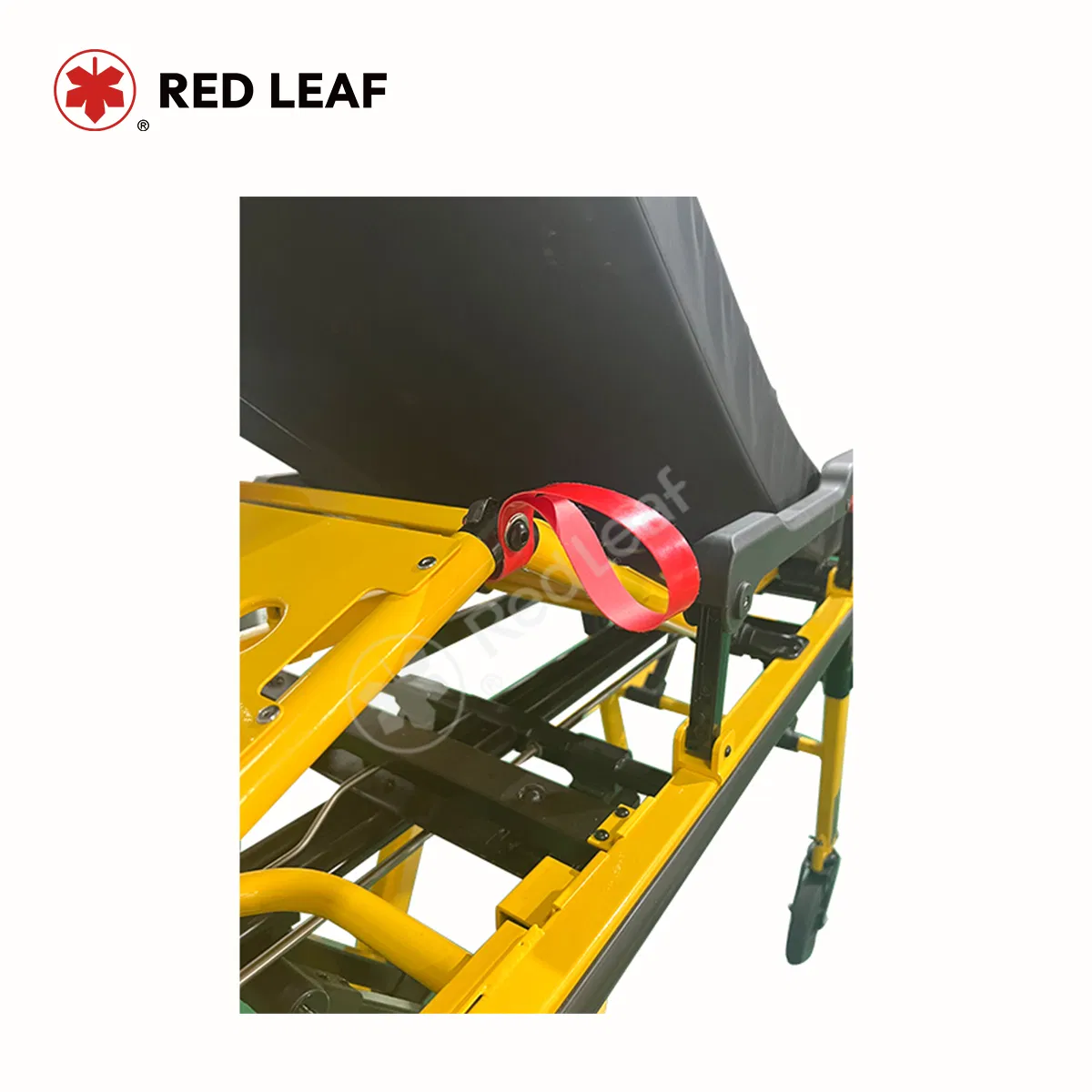

- Equipped with shoulder belts and a three-stage IV stand (max length 80cm).
- Mattress made of wear-resistant mesh cloth, 10cm thickness, flame retardant and waterproof.
- Front end universal wheels adopt an elastic latch to lock for straight or universal movement.
- Loading height: 62cm | Wheel size: 150mm / 200mm.
Specifications
| Model |
High Position |
Low Position |
Max Angle (Back) |
Max Angle (Knee) |
Self-Weight |
Load Bearing |
Packing Size |
G.W. |
| YDC-3K |
198*57*90cm |
198*57*39cm |
75° |
15° |
53KG |
250KG |
204*62*52cm |
68KG |
Frequently Asked Questions
Are you a factory or trading company?

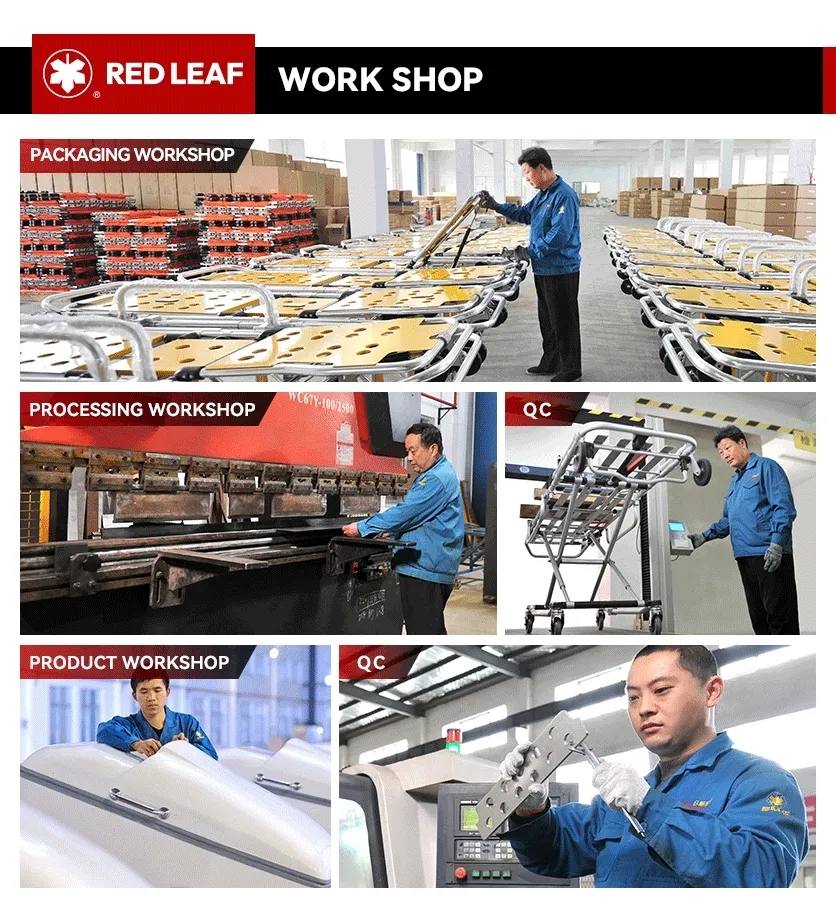

We are a Professional Manufacturer for emergency stretchers and Rehabilitation Therapy products.
What are your standard trading terms?
Payment: T/T 30% deposit, 70% balance against B/L or L/C. Lead time is normally 15-25 days. Shipping port: Shanghai, China.
How does your after-sales service work?
We provide a 12-month warranty. During this period, we supply free spare parts and technical guidance. Beyond warranty, we provide parts at cost with continued technical support.
Which quality certificates do you hold?
We hold certificates including FSC, CE, FDA, ISO9001, ISO13485, and EN1865.
Is the stretcher height adjustable?
Yes, the height of the whole stretcher can be adjusted in more than 4 positions, and the front/back parts have 6 adjustable positions for versatile medical use.
What is the maximum load capacity of the YDC-3K?
The YDC-3K model is designed to support a maximum load bearing weight of 250kg.
