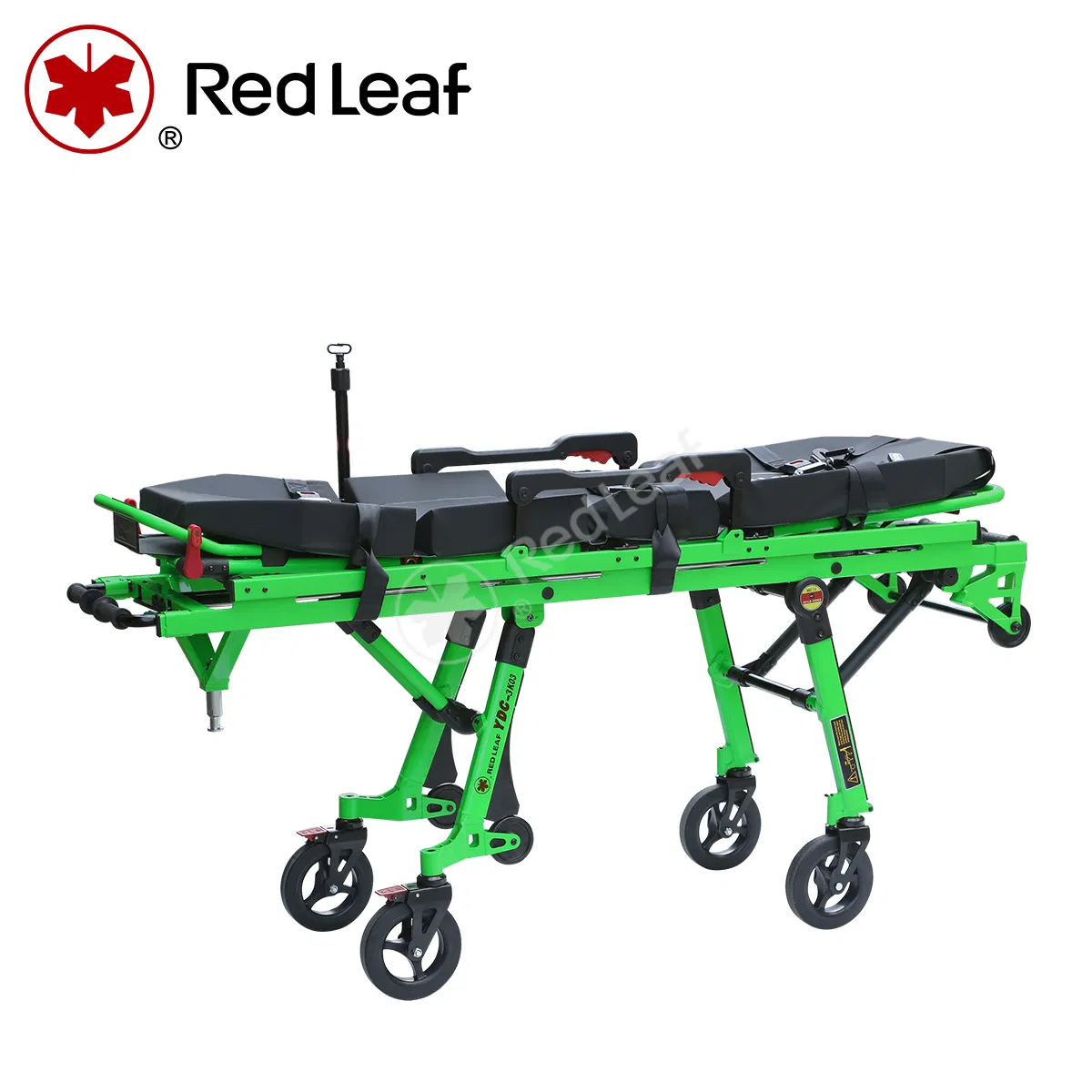

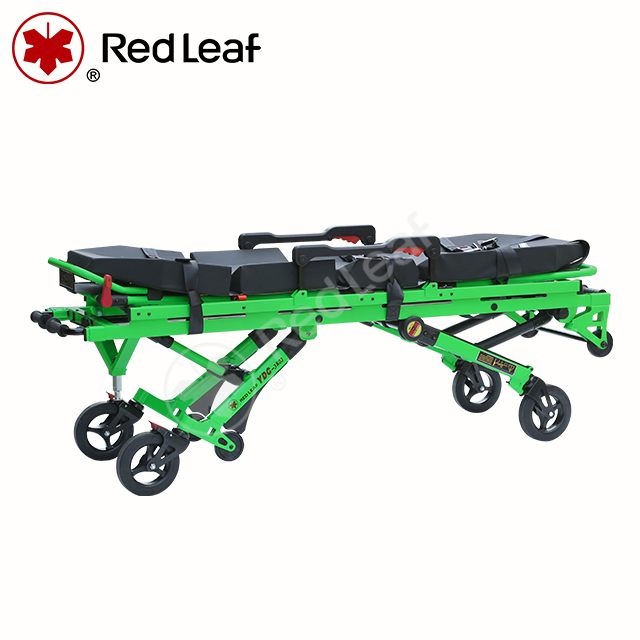

Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue
Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue
Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue
Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue
1 / 4
Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue
Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue
Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue
Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue

Ambulance Stretcher with Adjustable Height for Medical Emergencies Rescue

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
YDC-3K03
Certification
ISO, FDA, CE
Material
Aluminum Alloy
Load Bearing
250kg
High Position
197*57*90cm
Low Position

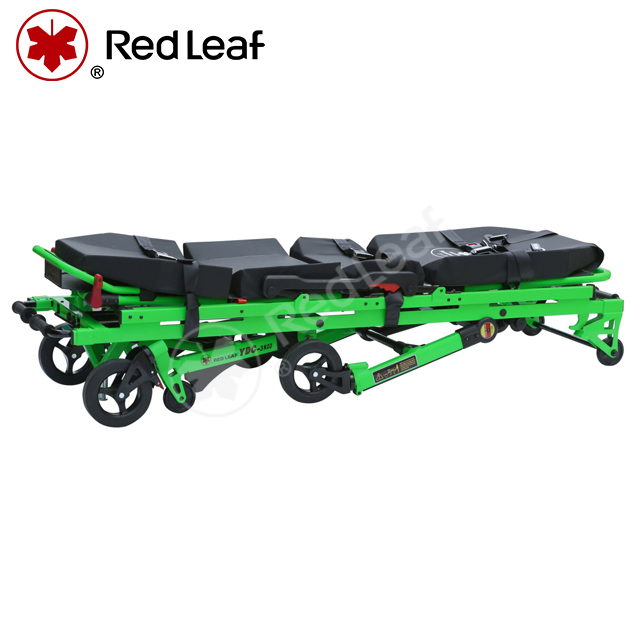

197*57*39cm
Gross Weight
60kg
Self-Weight
46kg
Loading Height
56cm

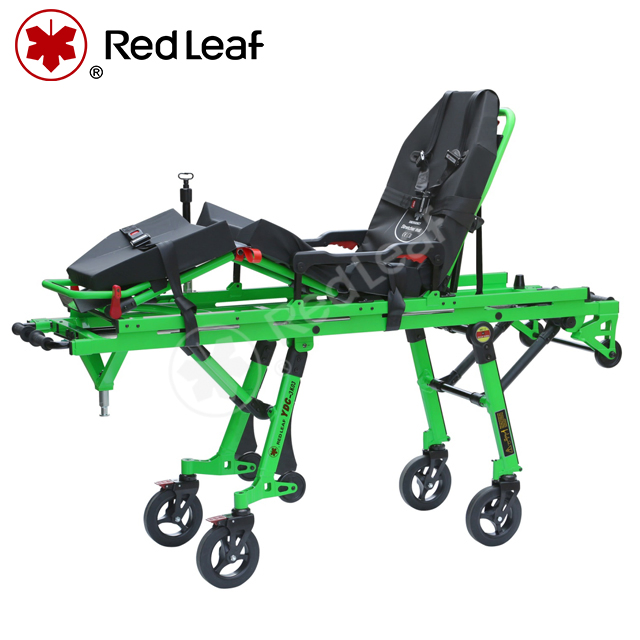

Max Back Angle
75°
★

Product Description

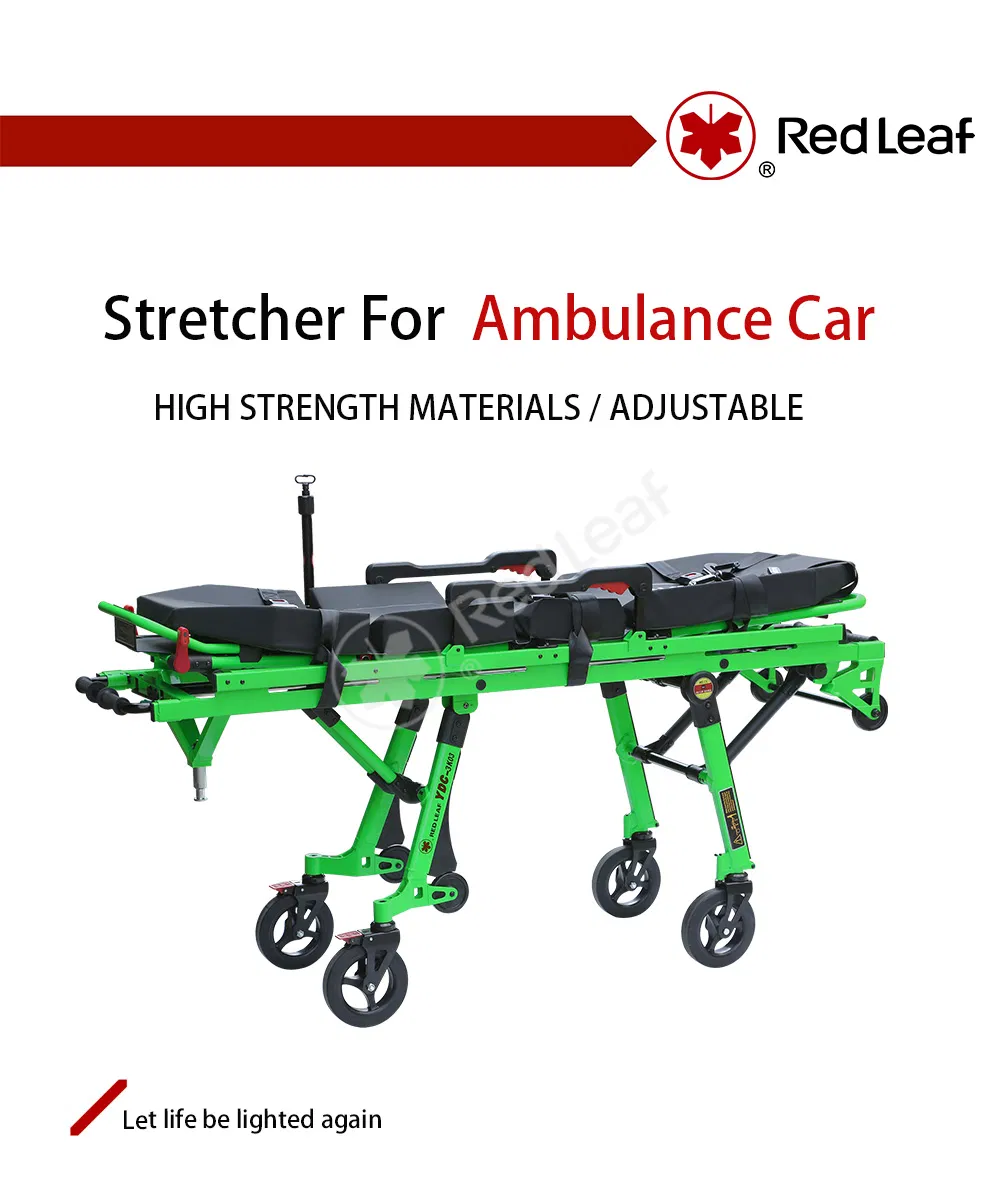

Ambulance Stretcher Overview Stretcher Details

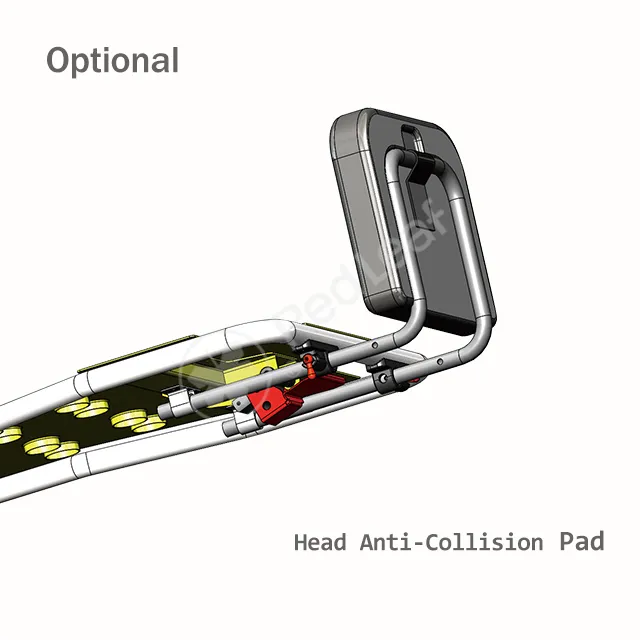

Adjustable Height Feature Stretcher Mechanism
  • Constructed with high-strength aluminum alloy for durability and lightweight handling.
  • Adjustable height with more than 4 positions, facilitating convenient CPR operations.
  • Independent adjustment for front and back parts with 6 available positions.
  • Intuitive folding mechanism and height control via front and rear pull rods.
  • Equipped with polymer plastic guardrails for easy patient access and secure shoulder belts.
  • Features a three-stage IV stand with a maximum length of 80cm.
  • Includes a 10cm concave mattress made of waterproof, flame-retardant, and wear-resistant mesh cloth.
  • Advanced front universal wheels with elastic latch for locking straight or universal motion.

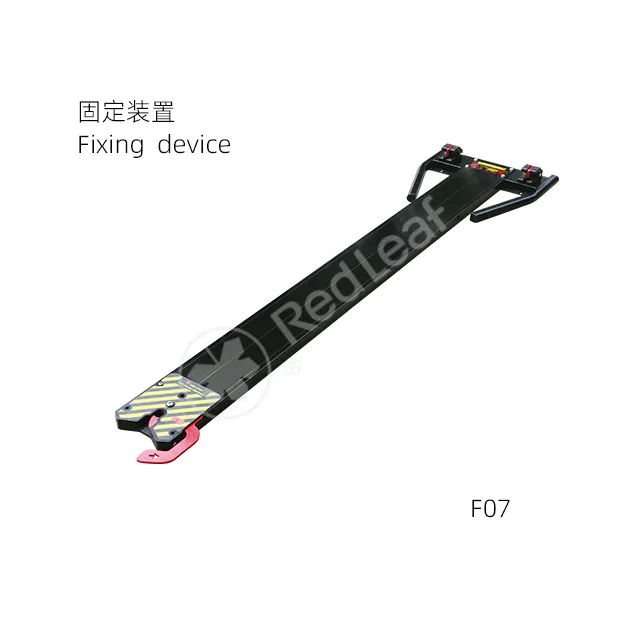

  • Supports 3-point fixation for enhanced stability during transport.
  • Wheel sizes available in 150mm or 200mm to suit various terrain needs.
📋

Technical Parameters

Model High Position Low Position Max Back Angle Max Knee Angle Self-Weight Load Bearing Packing Size G.W.
YDC-3K03 197*57*90cm 197*57*39cm 75° 15° 46KG 250KG 204*62*52cm 60KG
Dimensions Guide Product Features
Compliance Certification Product Application
Usage Environment
?

Frequently Asked Questions

Q: Are you a factory or trading company?
A: We are a professional manufacturer specializing in emergency stretchers and rehabilitation therapy products.
Q: What is the typical lead time for orders?
A: Normally, the lead time is between 15 to 25 days after the deposit is received, depending on the order volume.
Q: What are your standard payment terms?
A: We typically accept T/T (30% deposit, 70% balance against Bill of Lading) or L/C at sight.
Q: Do you provide after-sales service and warranty?
A: Yes, we provide a 12-month warranty from the date of receipt. During the warranty period, we supply free spare parts and technical guidance.
Q: Which quality certifications do your products hold?
A: Our products are fully certified with CE, FDA, ISO9001, ISO13485, and EN1865 standards to ensure international quality compliance.
Q: Can the stretcher height be adjusted for different ambulances?
A: Yes, the model features multiple height adjustment positions (6 positions for front/back) to accommodate various loading heights.
